All About Hammer Mill Part Wear and Tear

Hammer Mill Part Wear and Tear: An Intro

Hammer mill part wear and tear happens because of three main factors:

Abrasion: As material passes through the mill, abrasive particles scuff and erode metal surfaces. Hammers strike, grind, and shear material against screens and liners, gradually thinning the hammer face and shaving metal from pins and rods.
Impact Fatigue: Every time a hammer swings, it imparts a high-velocity blow. Over thousands of cycles, that repeated impact creates micro-cracks and stress points. Left unchecked, those micro-cracks expand, leading to chipping, spalling, or sudden hammer breakage.
Corrosion & Heat: In some applications, moisture or chemical exposure accelerates corrosion. High temperatures—especially when processing materials with high friction—can soften steel alloys, making them more susceptible to abrasion and impact damage.

Key components that experience wear:

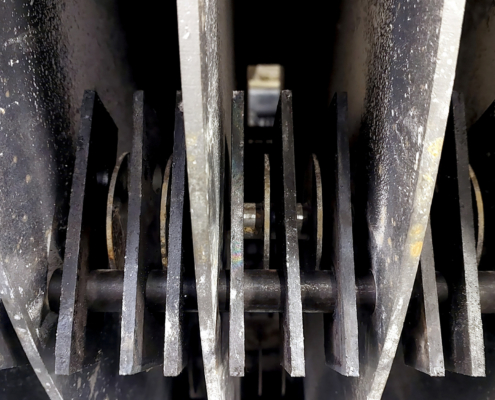

Hammers: These bear the brunt of crushing and grinding. A single worn hammer can throw off balance, causing vibrations that damage bearings and shafts.
Pins & Rods: Hammers attach to the rotor via heavy pins and rods. When these mountings loosen, bend, or score, the entire rotor assembly can misalign, accelerating wear across multiple parts.

Understanding these wear mechanisms is the first step toward proactive inspection and maintenance.

Signs of Wear in Hammer Mill Parts

If you’re not inspecting regularly, you’ll miss early signs of wear in hammer mills that could prevent a breakdown. Here’s what to watch for:

What to Watch for With Your Hammers

Rounded or Chipped Edges: A sharp hammer edge guarantees efficient impact. When that edge rounds off or chips, grinding efficiency drops. You’ll see more unbroken material and experience a surge in motor load as the hammer struggles to strike effectively.
Mass Loss: Thinning hammers weigh less. Even a 10–15% reduction in hammer mass alters impact energy, resulting in a coarser grind and more product recirculation. Accurate weighing or caliper measurements can confirm if a hammer is too thin.
Surface Cracks or Crazing: Tiny hairline cracks, especially around the hammer face, signal metal fatigue. Tap the hammer gently with a soft mallet—if you hear a hollow ring or see fine crack lines, replacement or hardfacing is overdue.

What to Watch for With Your Pins & Rods

Excessive Play (Wobble): When a hammer swings on its pin, there should be minimal lateral movement. If you can wiggle the hammer shaft by hand or see the rod shift in the housing, the pin or rod has worn clearances.
Scoring or Grooves: Deep scratches along pin surfaces or rod housings indicate metal-to-metal contact under load. That scoring suggests lubrication failure or heavy abrasion—either way, replacement is needed.
Bent or Stretched Rods: If a rod shows visible bending or seems longer than its original specification, it has fatigued. Continuing with a bent rod can misalign hammers and rotor assemblies.

Performance Clues to Look for

Increased Vibration or Noise: Unbalanced hammers or loose pins manifest as rougher operation and louder tonal changes. Sudden spikes in vibration might hint at a cracked hammer or shear pin failure.
Inconsistent Particle Size: If your product suddenly yields more fines or oversized bits, the hammers aren’t striking evenly. Worn hammers or misaligned pins often cause this inconsistency.
Elevated Power Draw: As hammers dull, the motor works harder to maintain throughput. Monitor amperage—steady increases at a constant feed rate often indicate that the hammers have lost mass or edge sharpness.

Spotting these signs early lets you schedule repairs or hardfacing before a minor issue escalates into major downtime.

Noticed serious hammer mill part wear and tear? Browse our hammer mill parts to find hammers, pins, and rods engineered for extended life and peak performance.

Browse Hammer Mill Parts

How Often Should You Inspect Your Hammer Mill Parts?

In general, your inspection frequency should reflect the abrasiveness of the material and the number of hours your mill runs.

For very abrasive or high-RPM applications, check hammers, pins, and rods every 250–500 operational hours.
In more moderate feed or grain settings, inspections every 500–1,000 hours can suffice.

The key is to establish a regular schedule, shut down the mill, lock out power, and don protective gear. Begin each cycle by visually scanning hammer faces for chips or cracks and wiggling each hammer on its pin to detect looseness. Feel pins for grooves or scoring and verify rods remain perfectly straight. Measure hammer thickness with calipers and compare readings to the original specifications. Record every finding in a wear log: documenting mass loss, pin diameters, and rod straightness helps you track trends and adjust intervals over time.

As wear rates increase, shorten your inspection window. If wear remains minimal in gentler operations, you can stretch those intervals slightly, but never skip them. Consistent checks are the only way to catch hammer mill part wear and tear before small issues spiral into major breakdowns.

Can You Continue Operating with Slightly Worn Parts?

Minor edge rounding or small pin play can be tolerated briefly, provided you monitor closely.

Short-term mitigations include rotating hammers to distribute wear, swapping slightly worn pins into less loaded slots, or slowing feed rates and rotor speeds to reduce stress.

Once a hammer loses more than 15–20% of its original mass or you spot cracks larger than a millimeter, operations risk imbalance, reduced throughput, and safety hazards. Continuing to run with critical wear can damage bearings, loosen shafts, and create dangerous projectiles if a hammer shatters.

For pins, any lateral movement beyond 0.5 mm or deep grooves means immediate replacement. Bending or stretching in rods demands urgent correction, or the rotor assembly alignment will suffer. In essence, while minor wear can be managed for a few hours, delaying proper repair or hardfacing too long invites far greater costs and unplanned downtime.

Benefits of Hardfacing Hammer Mill Parts

Let’s look at the benefits of hardfacing your hammer mill parts:

Extended Service Life

Hardfacing deposits a wear-resistant alloy onto the hammer face, or its pins and rods. This overlay forms a protective shell that drastically slows abrasion. A hammer that might require replacement or rebuilding after 500 hours can last 1,000–1,500 hours once hardfaced, halving your part consumption and minimizing downtime for replacements. Pins and rods similarly benefit: the hardened surface resists scoring and bending, preserving alignment and bearing life.

Improved Performance

Reinforcing worn hammers restores their original impact geometry, ensuring each strike delivers the correct force. That consistency yields an even grind size and fewer fines. A balanced rotor where each hammer weighs nearly the same runs smoother, reducing vibration and noise. Hardfaced pins maintain tight clearances, preventing rattling and preserving rotor alignment. As a result, motors draw less power to maintain throughput, lowering energy consumption and keeping production stable.

Preventive Maintenance Mindset

Hardfacing fosters a data-driven maintenance culture. By logging wear rates after each overlay, you refine your inspection intervals, applying hardfacing just before replacement thresholds. This prevents both premature part swaps (wasting money) and overdue repairs (risking failure). Over time, your team gains a clear picture of part lifespans, building predictable budgets for consumables and labor, rather than reacting to crises.

Enhanced Safety and Environmental Impact

A fractured hammer or loose pin can become a dangerous projectile. Hardfaced parts fracture less often because the hardened overlay resists cracking. That reliability lowers the risk of flying debris and protects technicians during operation. Fewer discarded parts also reduces scrap metal waste. By extending the useful life of each hammer, pin, and rod, you minimize environmental impact and align with sustainable hammer mill maintenance practices.

In short, hardfacing transforms hammer mill repair from a reactive cost center into a strategic investment that boosts uptime, lowers part consumption, and keeps your mill performing at peak efficiency.

Keep Operations Smooth and Seamless

Want expert guidance on hardfacing your hammer mill components? Contact Midwest Hardfacing today. Our team will help you develop a strategy, refine your hammer mill inspection schedule, and implement a hardfacing program that keeps your operations running smoothly.
